Taco 009-F5Y-IFC 1/8Hp Circulator
Description
TACO (USA) Cartridge Circulator
Specifications
- Casing (Volute): Cast Iron
- Stator Housing: Aluminum
- Cartridge: Stainless Steel
- Impeller: Non-Metallic
- Shaft: Ceramic
- Bearings: Carbon
- O-Ring & Gaskets: EPDM
Features
- Removable Integral Flow Check (IFC) - prevents reverse flow and gravity flow, eliminateds separate check valve, for lower pressure drop and better performance
- Cast Iron construction
- Standard high capacity output - Compact design
- Quiet, Efficient Operation
- Direct Drive - Low Power Consumption
- Unique Replaceable Cartridge Design - Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Maintenance Free

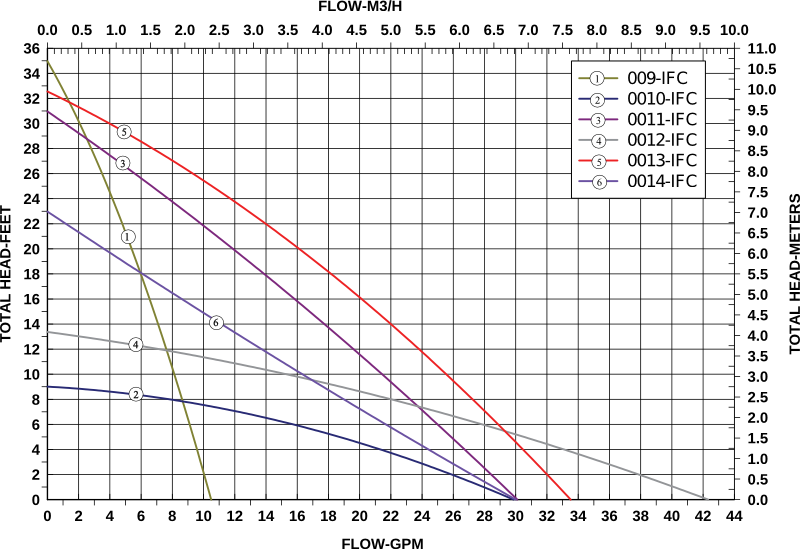

Performance Data
- HP: 1/8
- Electrical: 230V/1PH/60Hz 3250RPM
- Flow Range: 0 - 10 gpm
- Head Range: 0 - 35 ft.
- Min. Fluid Temperature: 40ºF (4ºC)
- Max. Fluid Temperature: 230ºF (110ºC)
- Max. Working Pressure: 125 psi
- Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
