Taco 1400-70B 1/2Hp Circulator

TACO (USA) High Capacity Circulator

Features

  • Compact Space Saving Design
  • Superior Efficiency, Maintenance Free Motor
  • High Starting Torque
  • Permanently Lubricated, sealed for life bearings
  • Precision balanced rotor for Quiet Operation
  • Carbon/Silicon-Carbide Mechanical seal
  • Direct Drive - Low Power Consumption
  • Anti-Condensate design for chilled water
  • Dual electrical knock-outs
  • Dual pressure taps, suction/discharge

Specifications

  • Casing: Bronze
  • Face Plate: Stainless Steel
  • Motor Housing: Steel
  • Impeller: 30% Glass-filled Noryl
  • Impeller Insert: Brass
  • Shaft: Stainless Steel
  • Mechanical Seal: Carbon/Silicon-Carbide
  • Motor Bearings: Stainless Steel Permamently Lubricated
  • O-Ring & Gaskets: EPDM

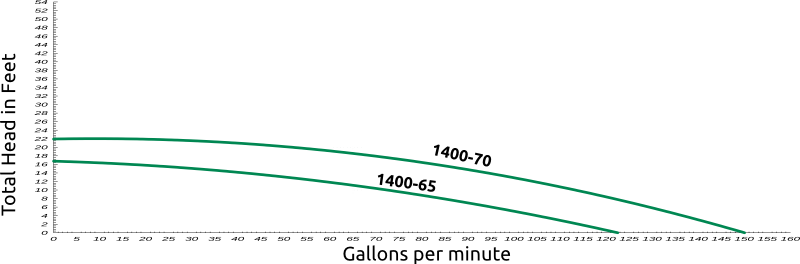

Performance Data

  • HP: 1/2
  • Electrical: 230V/1PH/60Hz 3450RPM
  • Flow Range: 0-150 gpm
  • Head Range: 0-22 ft.
  • Min. Fluid Temperature: 40ºF (4ºC)
  • Max. Fluid Temperature: 225ºF (107ºC)
  • Max. Working Pressure: 150 psi
  • Connection Sizes: Universal Flange
